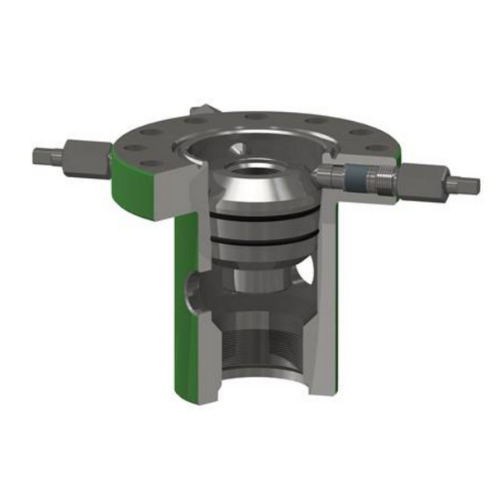

L-W2W Flanged Tubing Head
by WNS Lowery
The WNS Lowery L-W2W profile tubing head offers a flanged tubing head that can be used in conjunction with a B1 or B2 adapter flange. This innovative design eliminates possible leaks associated with traditional rubber packing by using a duel sealing mandrel and flange ring gasket. The high strength forged tubing head eliminates the possibility of porosity. All LW2Ws come with four lockdown bolts and two 2” LP side ports.
Features:
• 3M or 5M psi working pressure.
• 4 ½”, 5 ½”, or 7” Female tubing bottom thread
• 2 3/8”, 2 7/8”, and 3 1/2" Mandrel for suspension.
• Two 2” LP side outlets
• 7 1/16” 3M or 5M Top Flange
• Can be used in combination with B1 or B2 adapter flanges.
• Forged high strength carbon steel
